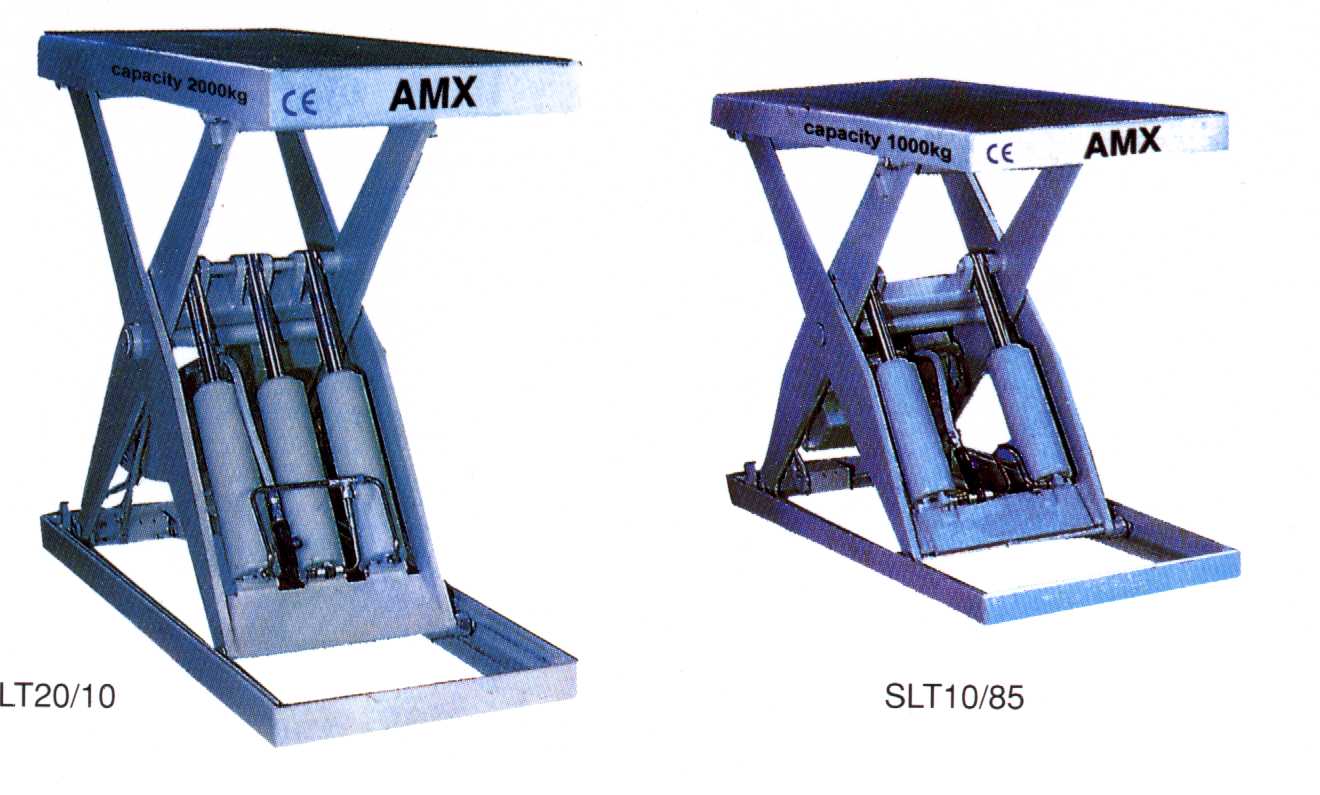

| AMX STATIONARY LIFT TABLE |
|
SLT Series Stationary Lift Table are widley used in assembly lines,automatic production lines to solve
the problem of height difference of working levels. There is a wide range of capacities(up to 9000kg)
with proper vertical travel for frequent lifting and lowering.
| Model | SLT10/85 | SLT10/150 | SLT20/10 | SLT30/85 | SLT53/100 | SLT90/110 | SLT90/210 |
| Capacity (kg) | 1000 | 1000 | 2000 | 3000 | 5300 | 9000 | 9000 |
| Vertical Travel (mm) | 850 | 1500 | 1000 | 850 | 1000 | 1100 | 2100 |
| Lowerd Height (mm) | 180 | 215 | 314 | 191 | 331 | 498 | 652 |
| Max.Rasied Height(mm) | 1030 | 1715 | 1314 | 1041 | 1331 | 1598 | 2752 |
| Table Size (mm) | 1200x1000 | 2400x1000 | 1500x1200 | 1600x700 | 1600x1200 | 3422x2696 | 3710x2794 |
| Elevating Time(s) | 25 | 38 | 25 | 20 | 23 | 22 | 42 |
| Power(kw) | 0.85 | 1.5 | 3 | 3 | 5.5 | 15 | 15 |
| Net Weight (kg) | 380 | 760 | 470 | 430 | 1100 | 4510 | 4500 |

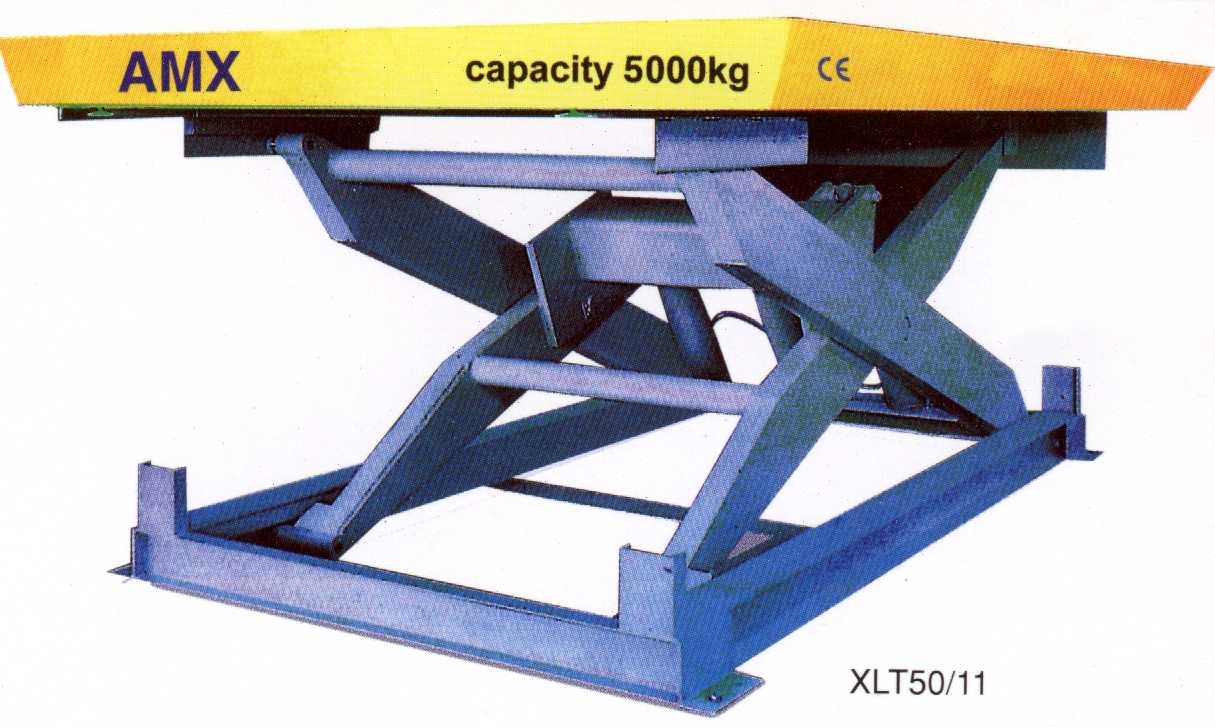

| AMX STATIONARY LODING TABLE |
 |
XLT series Stationary Loding Table are used mainly in fright yards ,loading docks, warehouses,
etc.Where loding and unloding are required ,and especially where the erection of permanent loading
structure is not allowed .Working efficiency will be greatly incresed if material handling equipment
such as forklift ,pallet truck,etc.is used in coordination.
| Model | XTL22/10 | XTL22/15 | XTL30/I8 | XTL30/35 | XTL50/20 | XTL50/20 | XTL90/12 | XTL90/18 |
| Capacity (kg) | 2200 | 2200 | 3000 | 3000 | 5000 | 5000 | 9000 | 9000 |
| Vertical Travel (mm) | 1000 | 1500 | 1800 | 3500 | 1100 | 2000 | 1220 | 1800 |
| Lowerd Height(mm) | 325 | 209 | 500 | 453 | 368 | 420 | 572 | 560 |
| Max.Raised Height(mm) | 1325 | 1709 | 2300 | 3953 | 1468 | 2420 | 1792 | 2360 |
| Table Size(mm) | 3000x2000 | 1500x1200 | 3050x2500 | 5300x2200 | 1800x1400 | 4000x3000 | 1930x921 | 3660x1800 |
| Elevating Time (s) | 17 | 34 | 30 | 131 | 52 | 54 | 51 | 75 |
| Power(kw) | 5.5 | 3 | 5.5 | 5.5 | 3 | 5.5 | 5.5 | 5.5 |
| Net Weight(kg) | 2240 | 1200 | 3100 | 5000 | 1300 | 4500 | 2117 | 4400 |
